1674 Meridian Ave
Project Overview

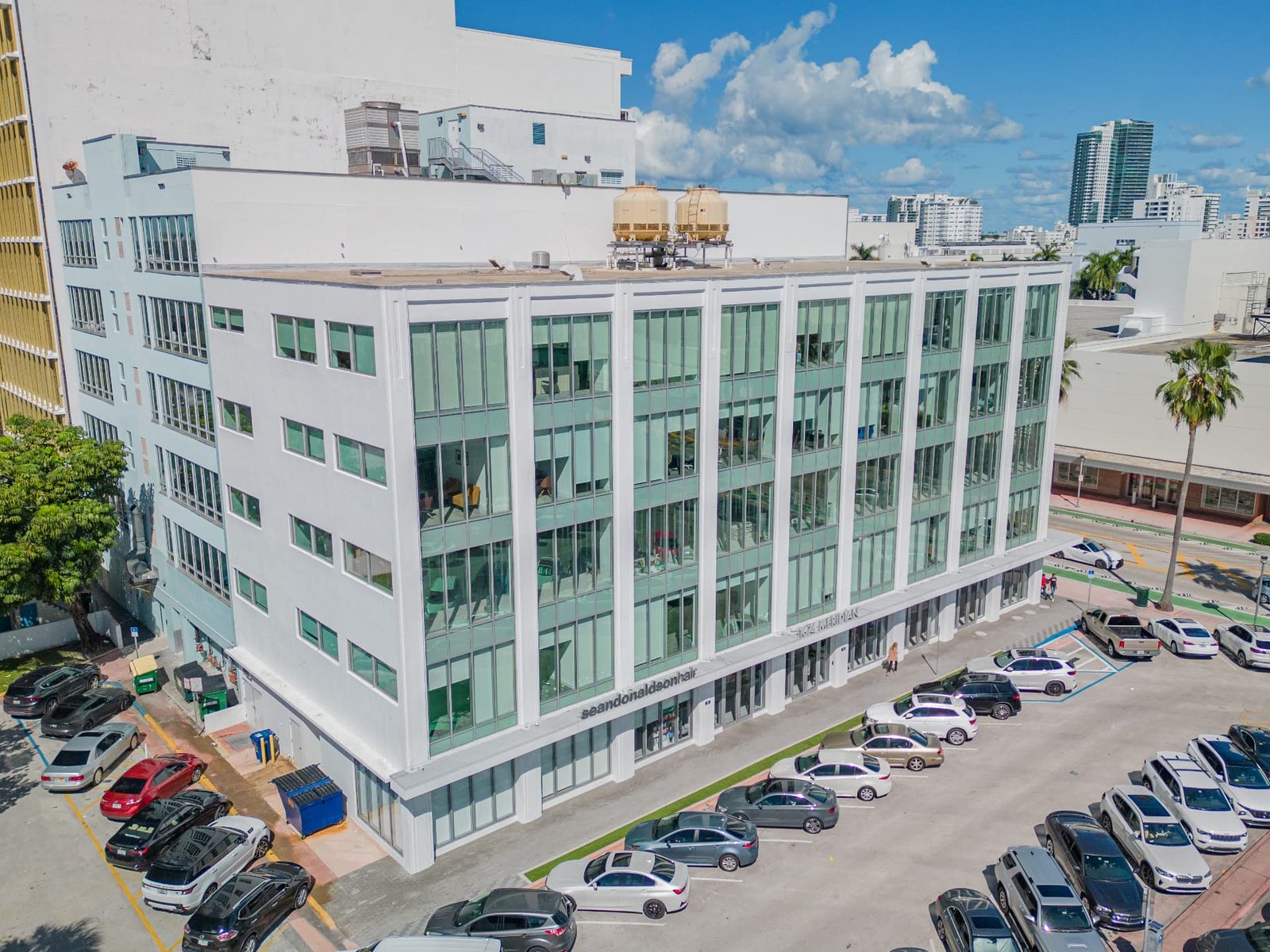

Engineering Solutions provided a range of structural design services for the existing five-story Class A office building at 1674 Meridian Ave, near Lincoln Road in Miami Beach, Florida. The scope included a cantilevered canopy system, retrofits to existing structural steel for new programming, and assistance with curtain wall tie-ins. ES also analyzed five existing roof bar joists requiring removal and reinforcement of web elements to accommodate mechanical ductwork, with permit-ready construction documents addressing gravity and lateral loads under the Florida Building Code, 7th Edition (2020).
The Challenge
Accommodating mechanical ductwork conflicts within five existing roof bar joists while maintaining gravity and lateral load capacity, and coordinating canopy, structural steel, and curtain wall upgrades within an existing office building renovation.
Our Solution
ES analyzed the existing roof bar joists and developed reinforcement details for the web elements affected by ductwork. The structural design scope also addressed the cantilevered canopy, steel retrofits, and curtain wall tie-ins, with permit-ready construction documents designed to the project's Florida Building Code, 7th Edition (2020) loading criteria.
