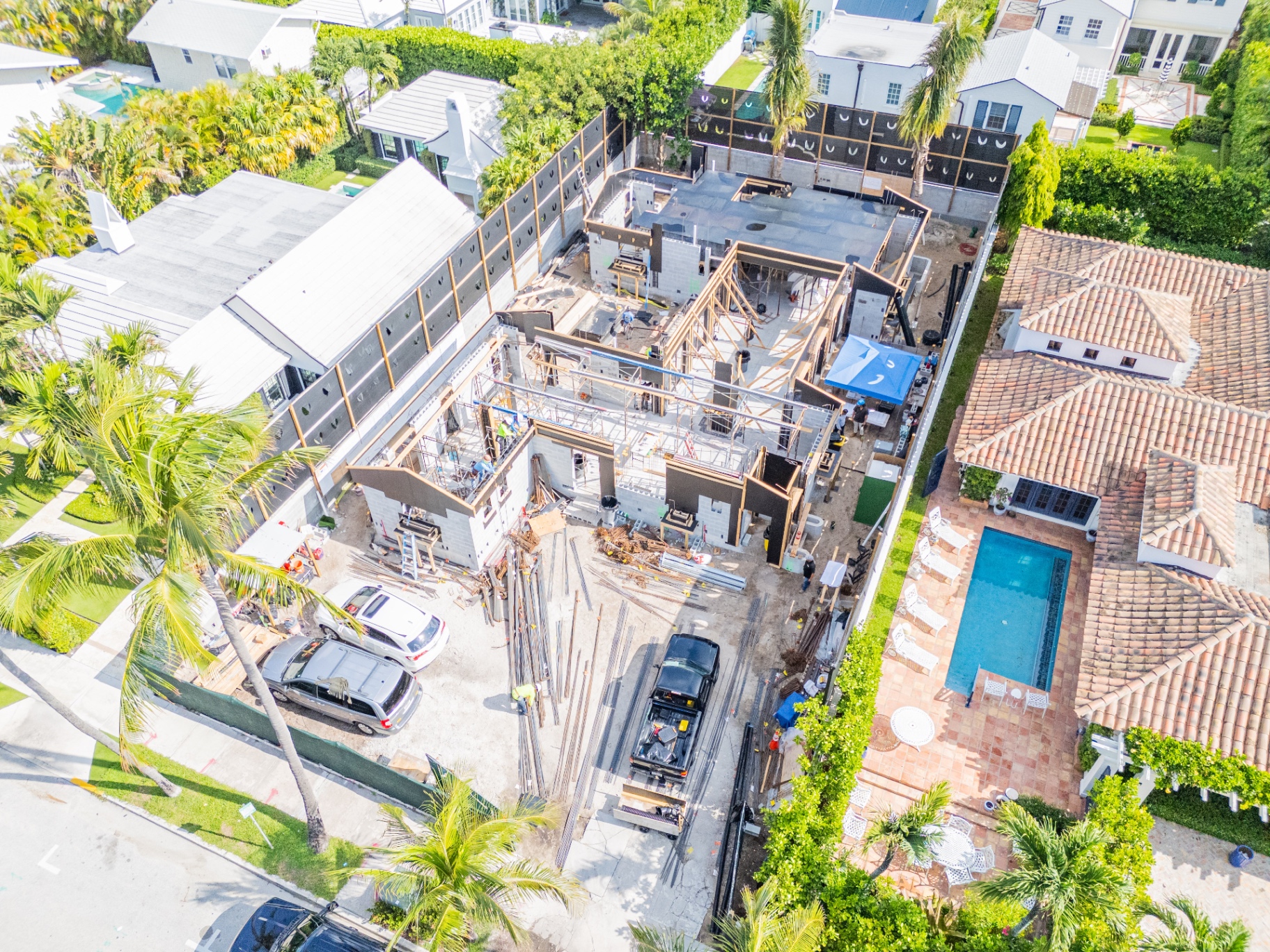

Chilean Ave Residence
Project Overview
Engineering Solutions was engaged to provide construction documents for a proposed 2-story Spanish Colonial-style home on Chilean Ave in Palm Beach, FL. Scope consisted of an in-depth analysis and preparation of construction documents for a new high-end residence with a pool. The anticipated structural system includes shallow foundations, exterior CMU bearing walls, second-floor prefabricated wood trusses, and prefabricated roof trusses. Deliverables included full construction documents inclusive of general notes, floor plans, structural reinforcement details, and wind pressure diagrams.
The Challenge
Designing a high-end 2-story Spanish Colonial residence with a pool on a Palm Beach site requiring code-compliant lateral resistance for coastal wind exposure while accommodating CMU bearing walls and prefabricated wood truss framing.
Our Solution
Shallow foundation system with exterior CMU bearing walls and prefabricated wood floor and roof trusses — delivered as full construction documents including general notes, floor plans, structural reinforcement details, and wind pressure diagrams.
